Two waterproofing systems can look identical the day the concrete goes back down and behave completely differently a decade later. The difference is almost never the pipe. It is the material around it.
Here is what to ask about, and why each one matters.
Clean washed stone
The stone bed is the actual drain. It has roughly a third of its volume as air, which means it collects and moves far more water than the perforated pipe running through it. The pipe is simply the fastest route out once the stone has done the collecting.
Crews save money here by bedding pipe in pit-run gravel, crusher dust, or native soil. All three contain fines, all three pack down, and all three eliminate the void space the system depends on. A drain laid in native clay has essentially nothing to collect water from.
Ask: is the pipe bedded in clean washed stone, and how much?
Filter fabric
This single component is the most common difference between a system that lasts fifty years and one that fails in five.
Wrapped around the stone envelope, filter fabric lets water pass freely while keeping soil fines out of the voids. Without it, silt and clay particles migrate in with every rainfall and settle. Over a few years the stone packs solid and the pipe fills, and you have a buried line of mud.
Nearly every failed original weeping tile we dig up in Nova Scotia was laid without it, which is why any pre-1980 home should be assumed to have compromised drainage.
Ask: is the stone wrapped in filter fabric?
Dimple board
The studded black sheet that goes against a foundation wall. It does two jobs, and both matter.
On the interior, run up the wall and lapped down into the stone bed, it channels any seepage coming through the concrete down into the drain rather than out onto your floor. It also creates an air gap, so a wall can dry inward, which is why finished walls built over dimple board do not grow mould behind them.

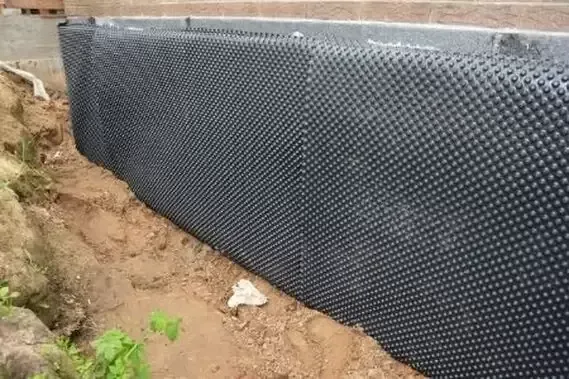

On the exterior, over the membrane, it relieves pressure against the wall and carries water down to the footing drain. Just as importantly, it takes the mechanical abuse of backfill. Most membrane damage happens during backfill, when a stone gets dragged down the wall. Dimple board is the sacrificial layer that prevents it.
Ask: is dimple board included, and does it lap into the stone?
Membrane versus damp-proofing
These are different products for different jobs, and the distinction costs homeowners real money.
Damp-proofing is the thin black asphalt emulsion sprayed on most new foundations at construction. It resists soil moisture wicking through concrete. It is applied thin, it cures brittle, it cannot bridge a crack that opens later, and it is not rated to hold back standing water under pressure.
Waterproofing is an engineered membrane applied at meaningful thickness that stays flexible, bridges minor cracking, and is designed specifically to hold back water under hydrostatic head.
Almost every foundation in Nova Scotia has the first. Very few have the second. If someone quotes you “exterior waterproofing,” ask which product is going on the wall.
A sealed sump basin
An open sump pit is a continuously evaporating pool of groundwater inside your basement: a leading cause of the musty smell people blame on their walls, and in radon-prone areas a direct soil-gas entry point.
A sealed lid with a gasketed access port and a proper vent costs very little more than an open one.
Ask: is the basin sealed?
A check valve, and freeze relief
Without a check valve, the column of water in the discharge pipe runs back into the basin every time the pump stops, and the pump lifts the same water repeatedly. It is the most common cause of a pump that “runs constantly,” and among the cheapest parts on this page.
Freeze relief matters specifically here. If the exterior end of a discharge line ices closed, the pump dead-heads against solid ice until the motor burns out. A relief fitting gives the water somewhere to escape near the house instead.
Ask: check valve and freeze relief, both?
The pattern
None of these are exciting, and none of them are visible once the job is finished. That is exactly why they are where corners get cut.
When you compare two quotes with a meaningful price gap, the gap is usually in this list. Ask about each item specifically, and the comparison becomes straightforward.
See what we install: interior weeping tile and exterior waterproofing membrane.
Written by the crew at Maritime Basement Waterproofing.
